OIL FILTER

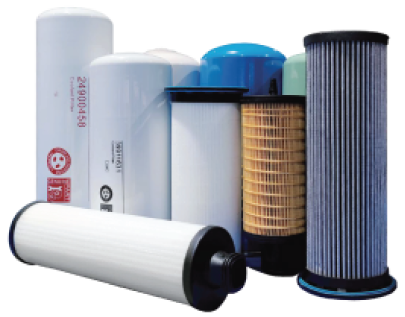

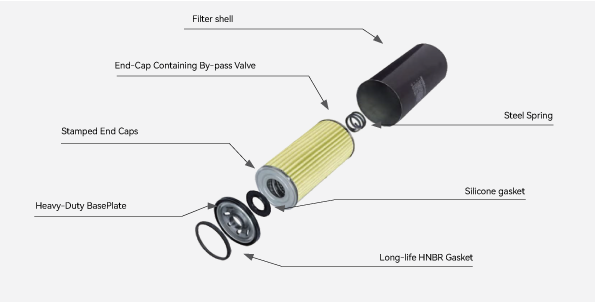

OIL FILTER ELEMENT
Function
The function of oil filter element is to remove solid particles, impurities and oil inferior substances in oil, make the oil that enters
the main engine is very clean to protect it safe operation.
High-class material
The Material of oil filter is choose HV companyʼs ultra fine glass fiber composite filter material or Korean Ahlstrom companyʼs
pure wood pulp filter paper, which with high temperature resistance, corrosion resistance, more stable performance, high
through rate, better filtering effect , the service life of oil filter is improved.
The harm of oil filter overuse
◆ Insufficient oil return amount after plugging causes the exhaust temperature to be too high, shortening the service life of
oil and oil filter.
◆ A lack of oil return amount after plugging will not lubricate the main engine, leading to a serious shortening of the main
engine life.
◆ When the filter element is damaged, unfiltered oil containing a large amount of metal particles enters the main engine will
causes it to be damaged.
Technical parameter
| Residual maximum oil content | 3PPM | Max working temperature | 120℃ |
| Highest initial pressure drop | 0.02MPa | Highest pressure difference | 5bar |
OIL FILTER ELEMENT
Suitable for the compressors
Ingersoll Rand, Atlas, Fusheng, Compair, LIUTECH, HITACH, KOBELCO, GAIRS, KAESER, KAISHAN, Red rings, UNITED OSD etc.
Performance parameters
Filtration accuracy: 10µm-15µm, , Filtration efficiency greater than 98%, service life up to 2000 hours.
Note
Grease the gasket surface when installing.
Use shoddy oil or mixed oil will accelerate the formation of carbon ,and shorten the oil filter use life.
| Filtration accuracy | 10-15 μm | Max working temperature | 120℃ |
| Filtration efficiency | 98% | Max working pressure | 1.4~3.5MPa |
Sparepart Compressor.co.id
Mulai Bersama Kami
| IMAGE | PART NUMBER | BRANDS | POWER | DIMENSIONS | OTHERS | Contact |
|---|---|---|---|---|---|---|
| Oil Filter | P-CE13-528 | Kobelco | 93*172H 1.1/8''-16 | ORDER NOW | ||

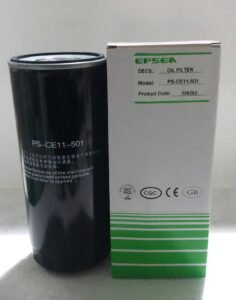

 | PS-CE11-501 | Kobelco | 108*H262 M28×1.5 | 11102 Black square head | ORDER NOW | |

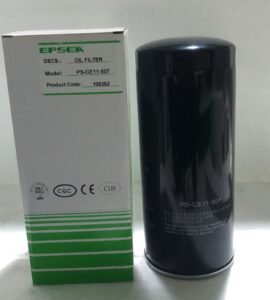

 | PS-CE11-507 | Kobelco | 108*H262 1.1/8''-16 | ORDER NOW | ||
| Oil Filter | 88290014-484 | Sull Air | ORDER NOW | |||
| Oil Filter | 1622365200 | Atlas Copco | GA75+83*H414 | ORDER NOW | ||

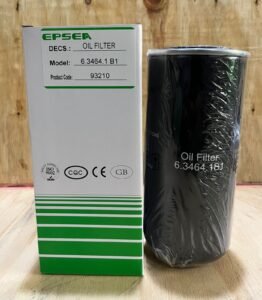

 | 6.3464.1 // 6.3464.1B1 / 6.3464.1 B1 | Kaeser | 93*210H | M24*1.5，962 black wave head | ORDER NOW | |

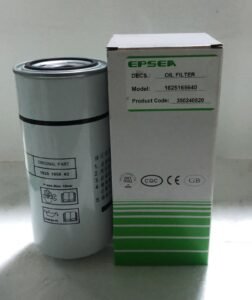

| Oil Filter | 1625165640 | Bo Lai Te | M25*1.5 | Reverse teeth，93*210H | ORDER NOW | |

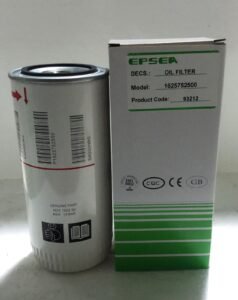

 | 1625480050/2903752501/1625752500 | Atlas Copco | M23×1.5 | Reverse teeth 962 white wave head | ORDER NOW | |
Oil Filter | W940.5 | Universal | 3/4''-16 | 940 black wave head | ORDER NOW | |

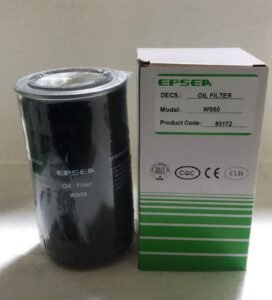

 | W950/H091700 (Sanfam) | Universal | 1''-12 | 950 black wave head | ORDER NOW | |

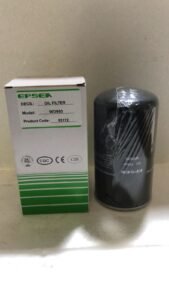

 | WD950 | Universal | 1''-12 | 950 black round head | ORDER NOW | |

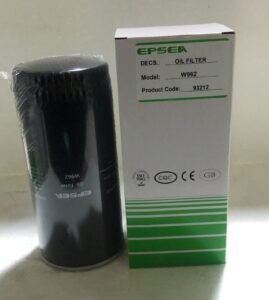

 | 1613610590/W962 | Universal | 1''-12 | 962 black wave head | ORDER NOW | |

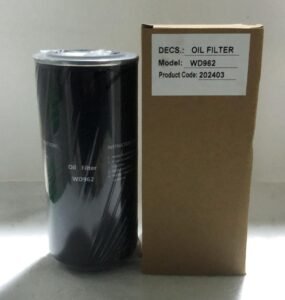

 | WD962 | Universal | 1''-12 | 962 black round head | ORDER NOW | |

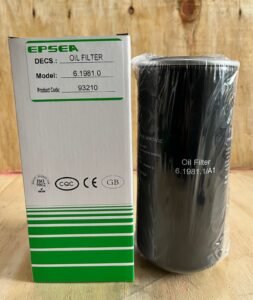

 | 6.1981.0 | Kaeser | 93*H210 | External，1”-12，962 black round head | ORDER NOW | |

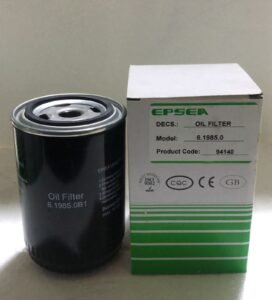

 | 6.1985.0 | Kaeser | 94*H140 | ORDER NOW | ||

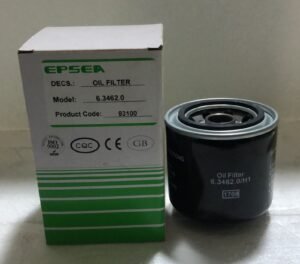

 | 6.3462.0 | Kaeser | 93*H100 | ORDER NOW | ||

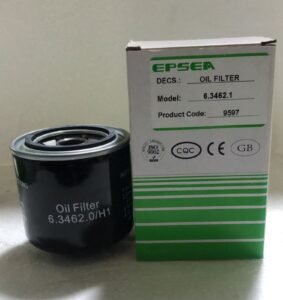

 | 6.3462.1 | Kaeser | ORDER NOW | |||
| Oil Filter | 6.3463.0 | Kaeser | 93*140H M22*1.5 | ORDER NOW | ||
| Oil Filter | 6.4493.0 | Kaeser | 83*298H | Internal | ORDER NOW | |
 | 250025-525 | Sull Air | 30-40HP | ORDER NOW | ||
 | 250025-526 | Sull Air | 50-200HP | ORDER NOW | ||
| Oil Filter | 88290014-484 | Sull Air | ORDER NOW | |||
| Oil Filter | 39911615 | Ingersoll Rand | Fiberglass | ORDER NOW | ||

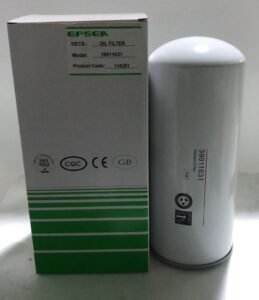

 | 39911631 | Ingersoll Rand | 75-200HP | 1-3/4-12 | ORDER NOW | |
 | 54672654 | Ingersoll Rand | 1''-12, 93*H210 | 962 white round head | ORDER NOW | |
 | 1622365200 | Atlas Copco | 83*H414 | GA75+ | ORDER NOW | |

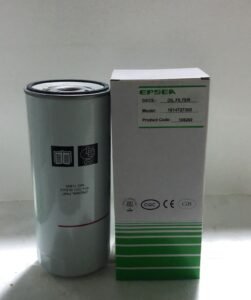

 | 1614727300 | Atlas Copco | 1.1/8''-16 | 11102 White square head | ORDER NOW | |

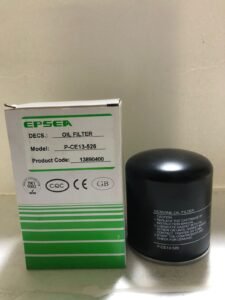

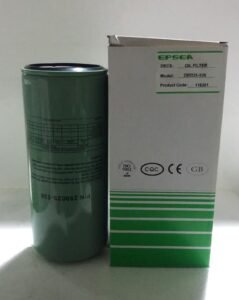

 | P-CE13-526 | Kobelco | 1-1/8-16 | ORDER NOW | ||
| Oil Filter | P-CE13-528 | Kobelco | 93*172H | 1.1/8''-16 | ORDER NOW | |
 | PS-CE11-502 | Kobelco | 1''-12 | ORDER NOW | ||

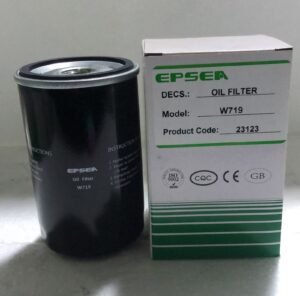

 | 2903033701/W719 (W719/5) | Universal/MANN | 3/4''-16 | 719 Black wave head | ORDER NOW | |

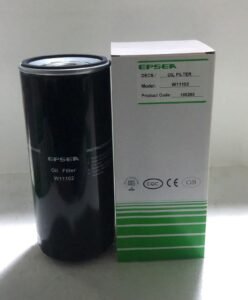

 | W11102 | Universal | 1.1/8''-16 | 11102 Black square head | ORDER NOW | |
| Oil Filter | W1374 | Universal | 1.1/2''-16 | 1374 Black round head | ORDER NOW | |

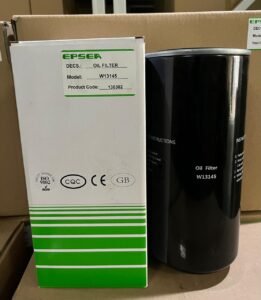

 | W13145 | Universal | 1.1/2''-16 | 13145 Black round head | ORDER NOW | |

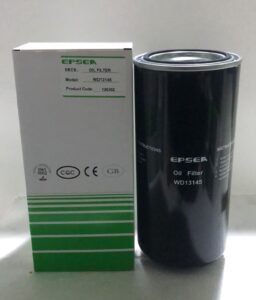

 | WD13145 | Universal | 1.1/2''-16 | 13145 Black round head | ORDER NOW | |

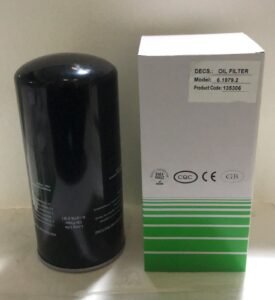

 | 6.1979.2/6.1979.2 B1 | Kaeser | 135*H306 | External，1.1/2-16 ，13145 Black round head | ORDER NOW | |

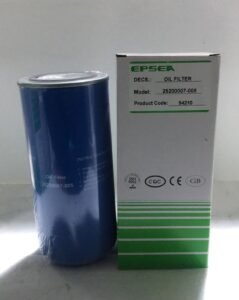

 | 25200007-005 | Si Ke Luo | M23×1.5 | 962 Blue round head | ORDER NOW | |

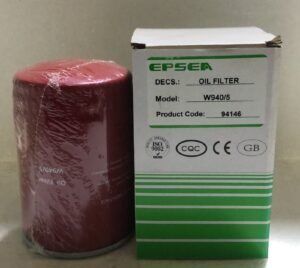

| Oil Filter | 56220/W940/5 | MANN | 1''-12 | Red wave head, Huada order, one-way circulation, silk screen printing plate | ORDER NOW | |
 | 1502-B1-01 | Denair | M40*1.75 | 13145 body blue round head | ORDER NOW | |
 | 1625165640 | Bo Lai Te | M25*1.5 | Reverse teeth | ORDER NOW | |
| Oil Filter | 02250155-709 | Sull Air | 63*H197 | Internal (Total height 215） | ORDER NOW | |
 | 92888262 | Ingersoll Rand | 136XH300 1. 1/2' ' - 16 13145 | ORDER NOW | ||

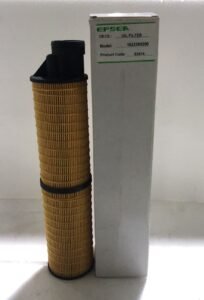

| Oil Filter | 1622314200 | Atlas Copco | 84*48*175 | GA37+/GA45+，Internal ，1625840080 | ORDER NOW | |
| Oil Filter | 1613610500 | 1”-12 | 962 White Wave Head | ORDER NOW | ||

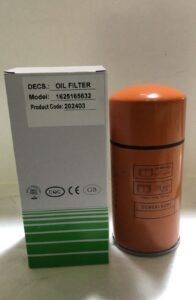

 | 1625165632 | 1502-131-01 | ORDER NOW | |||
| Oil Filter | 1625165631 | 93*H175 | ORDER NOW | |||
 | 55175910/59031210 | Hitachi | 30HP | 1''-12 Silver | ORDER NOW | |

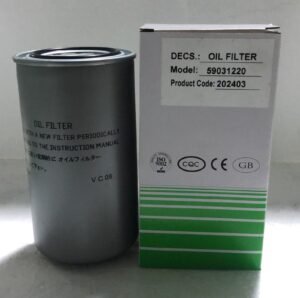

 | 59031220 | Hitachi | ORDER NOW | |||

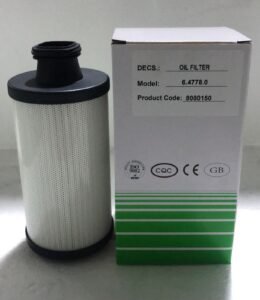

 | 6.4778.0 | Kaeser | 80*80*150 | ORDER NOW | ||

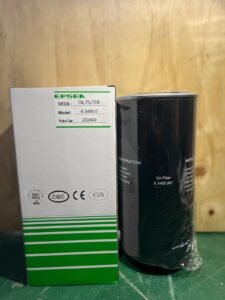

 | 6.3465.0 / 6.3465.0/B // 6.3465.0B1 / 6.3465.0 B1 | Kaeser | 135*H300 | M39*1.5， 13145 Black round head | ORDER NOW | |
| Oil Filter | 1625426100/1625426150 | Atlas Copco | Φ93*95H | ORDER NOW | ||

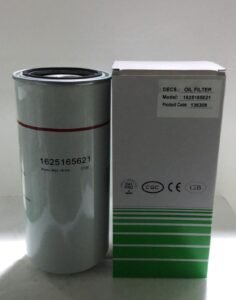

 | 1625165621 | Atlas Copco | 136*308 | 1 17/32 16reverse teeth | ORDER NOW | |
| Oil Filter | 6.4778.0 | Kaeser | 80*80*150 | ORDER NOW | ||
| Oil Filter | 1625165621 | Kaeser | 136*308 | 1 17/32 16 reverse teeth | ORDER NOW | |

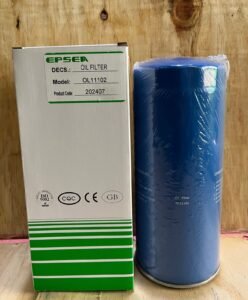

 | OL11102 | Kaeser | M30*1.5 | 11102 blue square head | ORDER NOW | |
| Oil Filter | 1092200288 | Atlas Copco | M24*1.75 | 31/32''-14 ，Reverse teeth，962 white round head | ORDER NOW | |

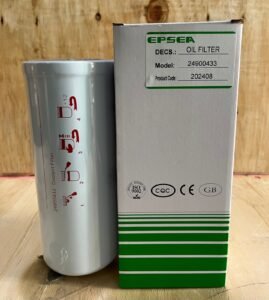

 | 24900433 | Ingersoll Rand | M24*1.75 | Fiberglass | ORDER NOW | |
| Oil Filter | W962-BQ | Ingersoll Rand | 1''-12 | 962 black wave head | ORDER NOW | |
| Oil Filter | OL00940 | Jaguar | M20×1.5 | Jaguar Tooth, 940 Blue Round Head | ORDER NOW | |
| Oil Filter | OL00962 | Jaguar | M26×1.5 | Jaguar Tooth, 962 Blue Round Head | ORDER NOW | |
| Oil Filter | OL13145 | Jaguar | 136X300A, M38*2 | Jaguar New Oil Filter | ORDER NOW |
