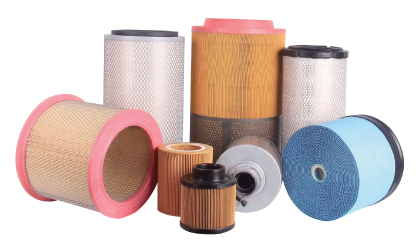

Air Filter
Air Filter
Suitable for the compressors:
Ingersoll Rand, Atlas, Fusheng, sullair, LIUTECH, Compair, HITACH, KOBELCO,BOGE, Dengfu,KAESER, KAISHAN, Red rings, DesLand,UNITED OSD, Schneider Sunshine, Jufeng, Lida Luowei, Rotorcomp, kangkeer,Wen-jian, Jaguar, Xinda, quincy, SCR, Feihe, Langchao, GAIRS, Linghein, GANEY, Hanbell etc.
Performance parameters
Filtration accuracy: 3µm-10µm, Filtration efficiency 99.5%, service life up to 2000 hours.
Note
◆ Regularly counter blowing based on your using situation.
◆ The rated inlet air capacity of filter element will more than main-engineʼs
◆ Choose the air filter with low inlet resistance and has huge dust capacity
◆ Put the filter element on the dry and Ventilated place, avoid be damped to affect the service life.
Technical parameter
| Filtration accuracy | 3~10 μm | Max working temperature | 100℃ |
| Filtration efficiency | 99.50% | Initial negative pressure | 0.01bar |
Sparepart Compressor.co.id
Mulai Bersama Kami
| PART NUMBER | BRANDS | POWER | DIMENSIONS | OTHERS | Contact |
|---|---|---|---|---|---|
| 02250125-684/S-CE05-504 | Kobelco | 50HP | 183*110*H380 | 0 Black Rubber / New Model | ORDER NOW |
| 02250125-684/S-CE05-504 | Sull Air | 50HP | 183*110*H380 | 0 Black Rubber / New Model | ORDER NOW |
| 59031160/52302330 | Hitachi | 30HP | 128*85*H303 | 0 Black Rubber | ORDER NOW |
| C20500/1613740800/3211319370 | Atlas Copco | 50HP | 196*115*H365 | 凸25 ，One end through (new model) | ORDER NOW |
| C20500/1613740800/3211319370 | Mu Feng | 75HP | 196*115*H365 | 凸25 ，One end through (new model) | ORDER NOW |
| C20500/1613740800/3211319370 | Jaguar | 75HP | 196*115*H365 | 凸25 ，One end through (new model) | ORDER NOW |
| C25860/1613950300//6211474550/500//59004040 | Atlas Copco | 100HP | 247*150*H375 | 凸25 ，One end through (new model) | ORDER NOW |
| 39903281 | Ingersoll Rand | 378*205*H178 | Red rubber cover, Both ends are connected | ORDER NOW | |
| 1637000329 | Atlas Copco | 227*115*H200/11 | Vacuum pump | ORDER NOW | |
| 1625390408 | Atlas Copco | H215*150*90 | Vacuum pump, Both ends are connected | ORDER NOW | |
| 56972330 | Hitachi | 100HP | 235*135*H358 | 0 Black Rubber | ORDER NOW |
| PS-CE05-505 | Kobelco | 235*135*H468 | 0 Black Rubber / New Model | ORDER NOW | |
| 66165348 | Kai Shan | 50HP | 165*90*H348 | Outer/Black Rubber one end through | ORDER NOW |
| 66165349 | Hitachi | 50HP | 165*90*H348 | Outer/Black Rubber one end through | ORDER NOW |
| 66130330/66235358 | Kai Shan | 150HP | H510*275*150 | Inner and outer core (Black Rubber) | ORDER NOW |
| 66143490/66280520 | Kai Shan | 75-100HP | H358*235*135.H330*130*95 | Inner and outer core (Black Rubber) | ORDER NOW |
| 1613900100/C1140/1613900100 | Atlas Copco | 10HP | 100*68*H80 | Both ends are connected | ORDER NOW |
| 1613900100/C1140/1613900100 | Kai Shan | 10HP | 100*68*H80 | Both ends are connected | ORDER NOW |
| 1613900100/C1140/1613900100 | Wei Er Sheng | 10HP | 100*68*H80 | Both ends are connected | ORDER NOW |
| C1250/1613872000/1625173733/1092200283 | Atlas Copco | 30HP | 120*68*H135 | Both ends are connected | ORDER NOW |
| C1250/1613872000/1625173733/1092200283 | Ai Er | 20HP | 120*68*H135 | Both ends are connected | ORDER NOW |
| C1250/1613872000/1625173733/1092200283 | Bao De | 20HP | 120*68*H135 | Both ends are connected | ORDER NOW |
| C1250/1613872000/1625173733/1092200283 | Wei Er Sheng | 20HP | 120*68*H135 | Both ends are connected | ORDER NOW |
| C1250/1613872000/1625173733/1092200283 | Jufeng | 20HP | 120*68*H135 | Both ends are connected | ORDER NOW |
| C1250/1613872000/1625173733/1092200283 | Jaguar | 10HP | 120*68*H135 | Both ends are connected | ORDER NOW |
| C16400/1613740700/2903740700/1625173672 | Atlas Copco | 50HP | 158*95*H345 | 凸25 , one end through | ORDER NOW |
| C16400/1613740700/2903740700/1625173672 | Fu Sheng | 50HP | 158*95*H345 | 凸25 , one end through | ORDER NOW |
| C16400/1613740700/2903740700/1625173672 | Jaguar | 50HP | 158*95*H345 | 凸25 , one end through | ORDER NOW |
| C16400/1613740700/2903740700/1625173672 | Ju Feng | 50HP | 158*95*H345 | 凸25 , one end through | ORDER NOW |
| C23610/1613800400 | Atlas Copco | 75-100HP | 218*125*H370 | 0 凸 rubber cover | ORDER NOW |
| C23610/1613800400 | Ju Cai | 75-100HP | 218*125*H370 | 0 凸 rubber cover | ORDER NOW |
| C23610/1613800400 | Ju Feng | 75-100HP | 218*125*H370 | 0 凸 rubber cover | ORDER NOW |
| C23610/1613800400 | Bo Lai Te | 75-100HP | 218*125*H370 | 0 凸 rubber cover | ORDER NOW |
| C23610/1613800400 | Ke Lai Si | 75-100HP | 218*125*H370 | 0 凸 rubber cover | ORDER NOW |
| 1622185501/1631043500 | Atlas Copco | 75-100HP | 227*130*H320 OD226/H322/凸22 | Red convex rubber | ORDER NOW |
| 88290014-485 | Sull Air | 139*45*35*H104 | 凸 model | ORDER NOW | |
| 02250125-371 | Sull Air | 135*88*322 | 0 Black Rubber | ORDER NOW | |
| 02250125-372 | Sull Air | ORDER NOW | |||
| 24172215 | Ingersoll Rand | 320*150*H382 | 0 Black Rubber, 90-110KW | ORDER NOW | |
| 39903265 | Ingersoll Rand | 378*205*H360 | Red rubber cover, Both ends are connected | ORDER NOW | |
| 1613950100 | Atlas Copco | 243*147*H325H365 | ORDER NOW | ||
| 6.4139.0 | Kaeser | 320*220*95H/105H | ORDER NOW | ||
| 6.4163.0 | Kaeser | 140*120*135H | ORDER NOW | ||
| 6.4432.0 | Kaeser | 140*120*95H | cellular | ORDER NOW | |
| 6.4161.0 | Kaeser | 140*120*70H | cellular | ORDER NOW | |
| 6.4212.0 | Kaeser | 140*50 | cellular | ORDER NOW | |
| S-CE05-507 | Kobelco | 235*135*335 | 0 Black Rubber | ORDER NOW | |
| S-CE05-505 | Kobelco | 100HP | 235*135*H468 | 0 Black Rubber / New Model | ORDER NOW |
| 25100010-001 | Si Ke Luo | 10HP | 133*66*H68 | 1625165417/1625165460 | ORDER NOW |
| 25100010-001 | Bo Lai Te | 10HP | 133*66*H68 | 1625165417/1625165460 | ORDER NOW |
| 88290002-337 | Sull Air | 238*132*H482/10 | (Iron cover) | ORDER NOW | |
| 88290002-338 | Sull Air | 456×126×116/16 | (Wool grid) | ORDER NOW | |
| 39708466 | Ingersoll Rand | 125*278*153 | Rubber cover | ORDER NOW | |
| 6.2084.0 | Kaeser | 158*144 | ORDER NOW | ||
| 6.2055.0 | Kaeser | 125*180H | ORDER NOW | ||
| 6.4143.0 | Kaeser | 302*223*83H/89H | ORDER NOW | ||
| 59031140/56972330 | Hitachi | 100HP | 235*135*H358 | Include plate at bottom | ORDER NOW |
| 59031160/52302330 | Hitachi | 30HP | 128*85*H303 | Include plate at bottom | ORDER NOW |
| 66165348/59031170 | Hitachi | 50HP | 165*90*H348 | Include plate at bottom | ORDER NOW |
| C15300/2914930400 | Ju Cai | 50HP | 150*90*H325 | 0凸 | ORDER NOW |
| C14200/2914930200 | Fusheng | 30HP | 125*78*H288 | ORDER NOW | |
| C14200/2914930200 | Jaguar | ORDER NOW | |||
| C14200/2914930200 | Jucai Jufeng | ORDER NOW | |||
| 59031150 | Hitachi | 50HP | 207*107*H285/0 | Black Rubber | ORDER NOW |
| 6.4149.0 | Kaeser | 420*254*95H/115H | ORDER NOW | ||
| 6.4148.1 | Kaeser | 420*253*H150 | 12 One end through 凹 the deep bottom | ORDER NOW | |
| 6.2085.0 | Kaeser | 190*111*365H/400H | ORDER NOW | ||
| 59004040 | Atlas Copco | 100HP | 247*150*H375 | 凸25 , one end through | ORDER NOW |
| 2914930000 | Atlas Copco | 116*67*H220/251 | Matching CF100 Inner | ORDER NOW | |
| 2914930100 | Atlas Copco | 56*41*H236 | Matching C1100 Outer | ORDER NOW | |
| 2914930300 | Atlas Copco | 70*67*H306 | Matching C14200 Inner | ORDER NOW | |
| 2914930500 | Atlas Copco | 75*62*H340 | Matching C15300 Inner | ORDER NOW | |
| 1636300579 | Atlas Copco | 75*62*H340 | Matching C15300 Inner | ORDER NOW | |
| 1630778399/1623778300 | Atlas Copco | 75*62*H340 | Matching C15300 Inner | ORDER NOW | |
| 1630220136 | Atlas Copco | 75*62*H340 | Matching C15300 Inner | ORDER NOW | |
| 02250087-420 | Atlas Copco | 75*62*H340 | Matching C15300 Inner | ORDER NOW | |
| 3211116338/66165340 | Linghein | 50HP | 165*87*H340/12 | Iron cover with hole at one end through, old model | ORDER NOW |
| 3211114295 | Linghein | 30HP | 140*82*H296/12 | Iron cover with hole at one end through | ORDER NOW |
| 66205355/59031180 | Hitachi | 75HP | 205*125*H355/0 | Black Rubber | ORDER NOW |
| SE-200240 | 200*130*H240/H250/0 | Upper rubber cover/lower iron cover | ORDER NOW | ||
| 66207415 | Hanshin | 100HP | 415*207*125/0 | ORDER NOW | |
| 66300440/KLX20-01/2205433806 | Fu Da | 150HP | 300*190*H440/12 | Iron cover with hole at one end through | ORDER NOW |
| 88290014-486 | 114*38*114149 | ORDER NOW | |||
| 6.2185.0 | 296*205*H593 | ORDER NOW | |||
| 6.4148.0 | 420*253*H150 | One end through, 12 凹 deep bottom | ORDER NOW | ||
| 6.2003.0 | ORDER NOW | ||||
| 02250168-053 | 290/245*160*H520 | ORDER NOW | |||
| 66280200 | Desran | 50HP | 280*H200*78/65凸 | Iron cover with screw，intergrated style | ORDER NOW |
| 66280201 | Xinlei | 50HP | 280*H200*78/65凸 | Iron cover with screw，intergrated style | ORDER NOW |
| 66280202 | Changsheng | 50HP | 280*H200*78/65凸 | Iron cover with screw，intergrated style | ORDER NOW |
| 6.6323.0 = 6.4249.0 | 300*420*255/12 | 凹 depth 80 , Iron cover | ORDER NOW | ||
| C23610/1613800400-BQ/W9030093 | Atlas/Jucai/Jufeng/ Bolaite/Kelaisi | 75-100HP | 218*125*H370 | 0 凸 rubber cover, fiber glass | ORDER NOW |
| C16400/1613740700-BQ/W9030077 | Atlas/Fusheng/Jaguar/Jufeng | 50HP | 158*95*H345 | 凸25 rubber , one end through, fiber glass | ORDER NOW |
| C14200-BQ/2914930200/W9030076 | Fusheng/Jaguar/Jucai/Jufeng | 30HP | 125*78*H288/0 | fiber glass | ORDER NOW |
| C25710-BQ/PS-CE03-509/W0023049 | Atlas / Hong Wu Huan | 150HP | 236*150*H500/0 | 凸 Red Rubber, fiber glass | ORDER NOW |
| 66128303/52302330 | Hitachi | 30HP | 128*85*H303/0 | Black Rubber | ORDER NOW |
| 66150488 | Kai Shan | 150HP | 150*110*H488/0 | Inner, Black Rubber, one end through | ORDER NOW |
| 6.2084.0/C16400 | Atlas/Fusheng/Jaguar/Jufeng | 50HP | 158*95*H345 | 凸25 rubber , one end through | ORDER NOW |
| 66235358/56972330 | Hitachi | 100HP | 235*135*H358/0 | Black Rubber | ORDER NOW |
| C30810/6.2185.0 | 200HP | 295*205*H560(Total 594） | Red rubber, Red five rings | ORDER NOW | |
| 66140296/3211114295 | Linghein | 30HP | 140*82*H296/12 | Iron cover with hole at one end through, old model | ORDER NOW |
| C25710/PS-CE03-509 | Atlas / Hong Wu Huan | 150HP | 236*150*H500/0 | 凸 Red Rubber, fiber glass | ORDER NOW |
